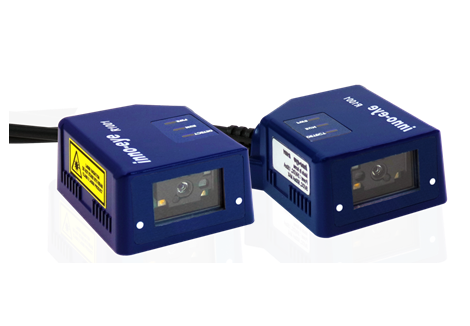

inno-eye scan SR/DP Series

- High decoding performance, Barcode reader

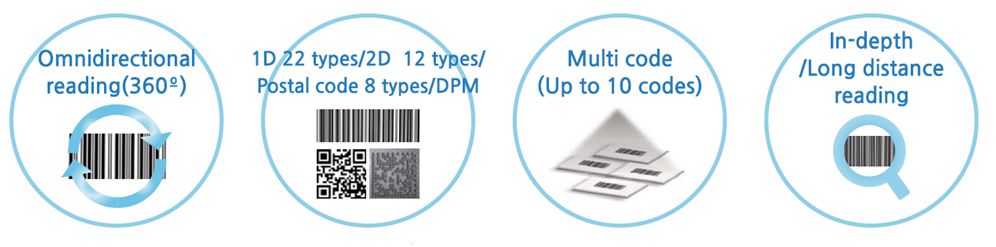

- 1D 22 types / 2D 12 types / Postal code 8 types / DPM

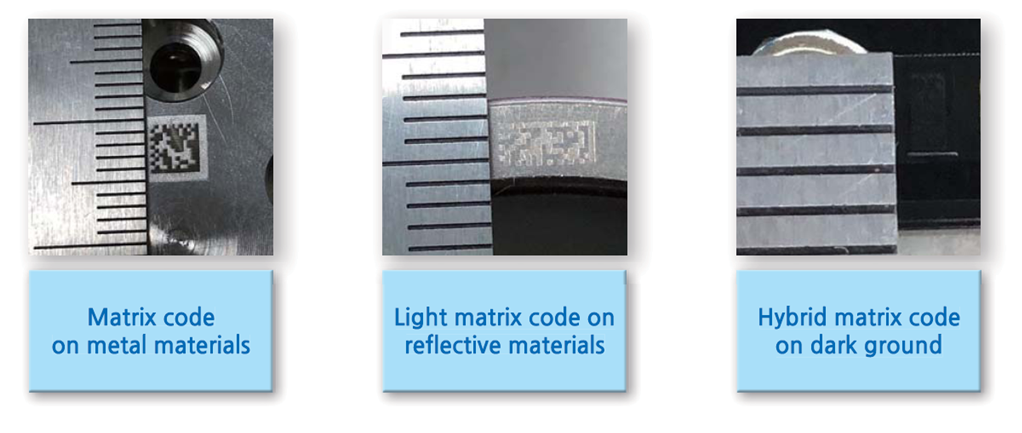

- Multi codes and Micro size DPM readable (Different models)
- In-depth/Long distance reading



  • Features

High decoding performance, Barcode reader

- Multi codes and Micro size DPM readable (Different models)







  • Specification

Series

SR TYPE

DP TYPE

Feature

- 1D/2D code reading
- Multi codes reading

- In-depth/Long distance reading

- 1D/2D/DPM code reading
- Outstanding decoding performance

Processing & Memory

Data Memory

 512 Mbit SDRAM

Flash Memory

 1Gbit (NAND Flash)

Sensor

Image Sensor

 1/3inch

Shutter

 Global

Resolution

 1280 X 960

Frame Rate

 54 fps

Pixel Size

 3.75μm X 3.75μm

Output Format

 Gray B/W Format(12bit)

I/O Interface

Digital Output

 2x Sink type output, Max sink 100mA, 60VDC (VAC Peak)

Digital Input

 1x Opto-isolated input

Ethernet

 N/A

Serial Communication

 RS-232C (EIA-232-C)

Serial Communication

 USB 2.0

Status LED

 LED (Power, Run, Detection)

Mechanical & Electrical Specs

Field of View

 Horizontal : 48.0°
 Vertical : 36.7°

 Horizontal : 31.0°
 Vertical : 23.0°

Optical Resolutions

 7.1cm (near), 15.8cm (Far) for 3  mil (Code 39)
7.6cm (near), 20.6cm (Far) for 5 mil (PDF 417)

 4.3cm (near), 10.9cm (Far) for 3  mil (Code 39)
4.3cm (near), 10.9cm (Far) for 5 mil (PDF 417)

Skew, Pitch & Roll

 Skew Tolerance: ±60°,
Pitch Tolerance: ±60°,
Roll Tolerance: 360°

Aiming LED(VLD)

 655nm Laser

Illuminator

 2 x White LEDs

Dimensions

 56mm X 2mm X 69mm

Weight

 80g

Housing

 Aluminum, Plastic



Power Consumption

+24VDC
max 0.11A

+24VDC
max 0.13A

Environment

Ambient Light

 Max 107,639 lux (Direct sunlight)

Operating Ambient
Temperature

 -30° ~ 60°C (Measured at engine chassis)

Storage Ambient
Temperature

 -40° ~ 70°C

Humidity

 95 % RH

Shocking Rating

 2000 G ± 5% applied via any mounting surface at -30°c and 60°c for a period of 0.85 ± 0.10 msec
2500 G ± 5% applied via any mounting surface at 23°c for a period of 0.70 ± 0.10 msec

The specification can be changed without notice for performance improvement.

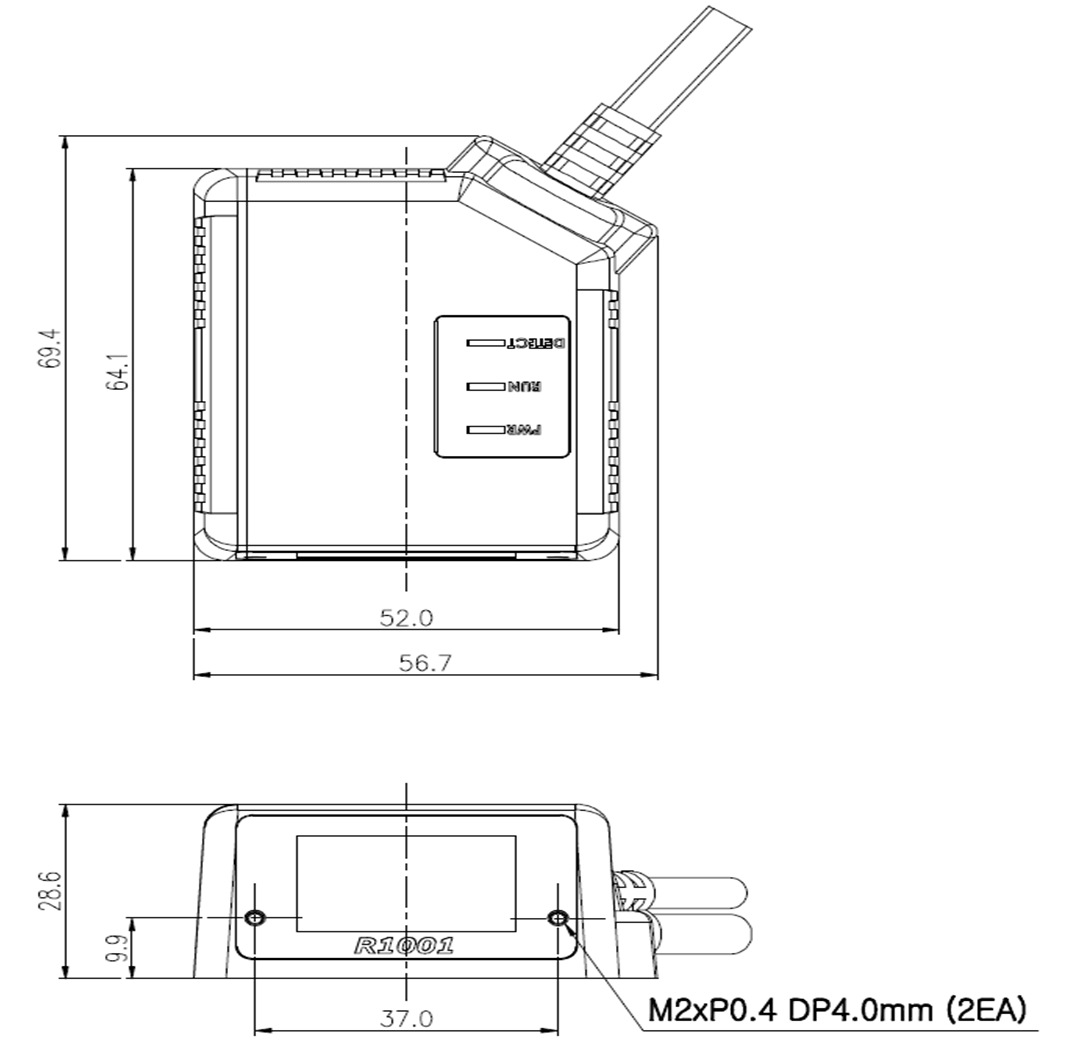

  • Dimension
